• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel
• Tires, P265/70R17 all-season, blackwall
• Recovery hooks, front, frame-mounted (Standard on 4WD models. Available on 2WD models.)
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season blackwall
• Luggage rack side rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Assist steps, Black
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Mirrors, outside heated power-adjustable, manual-folding (Mirror caps are Black.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, Black
• Liftgate with liftglass rear door system with rear-window wiper/washer

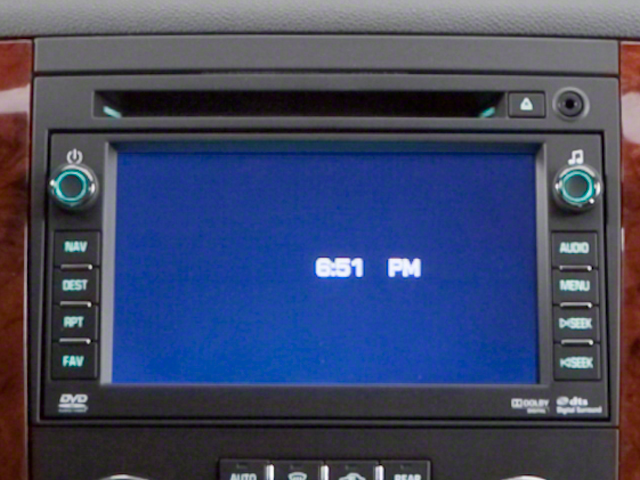

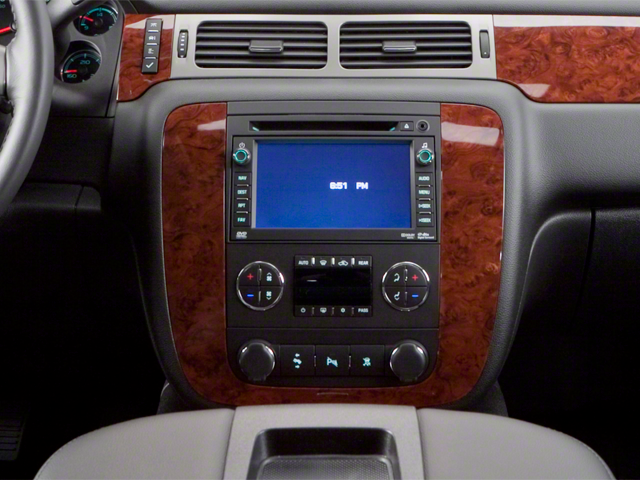

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume, TheftLock and auxiliary audio input jack
• Audio system feature, 6-speaker system (With (PPV) Identifier for Police vehicle, includes 8-speaker system) (With (5W4) Identifier for Special Service vehicle, includes 8-speaker system)
• XM Radio, delete

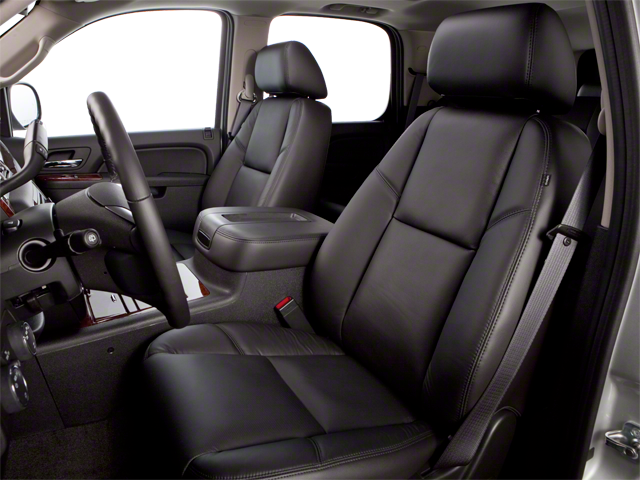

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining, center fold-down armrest with storage, lockable storage compartments in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets (With vinyl seats also includes (AM1) driver manual lumbar control. With vinyl seats requires (19V) Ebony vinyl and (BG9) Black rubberized-vinyl floor covering)

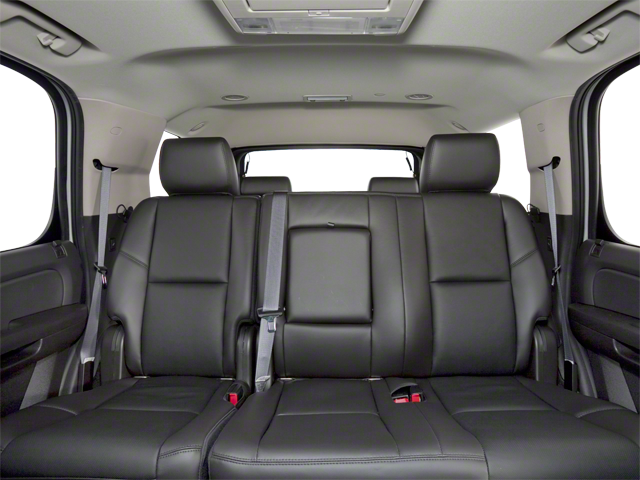

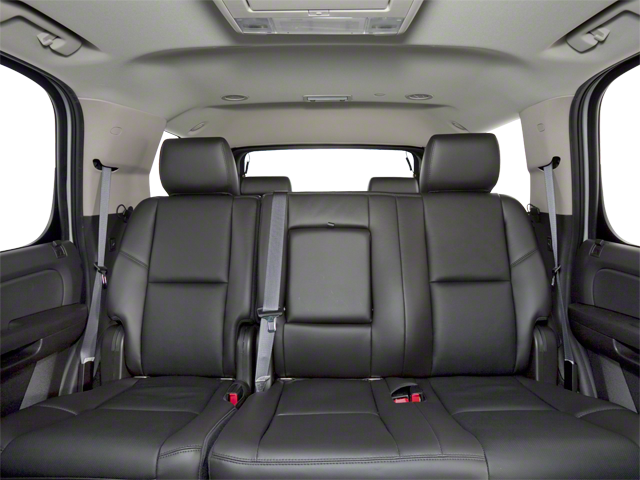

• Seats, second row 60/40 split-folding bench, 3-passenger with center armrest with 2 cup holders (Vinyl seats included and only available with (AZ3) front 40/20/40 vinyl split-bench seats, SEO (5T5) second and third row vinyl with front cloth seats or (9S1) seats, driver and passenger front, individual seats in vinyl trim.)
• Fleet Package
• Seat adjuster, driver 6-way power
• Seats, third row 50/50 split-bench, 3-passenger removable, all-belts-to-seat
• Headliner, cloth
• Floor covering, Black rubberized-vinyl

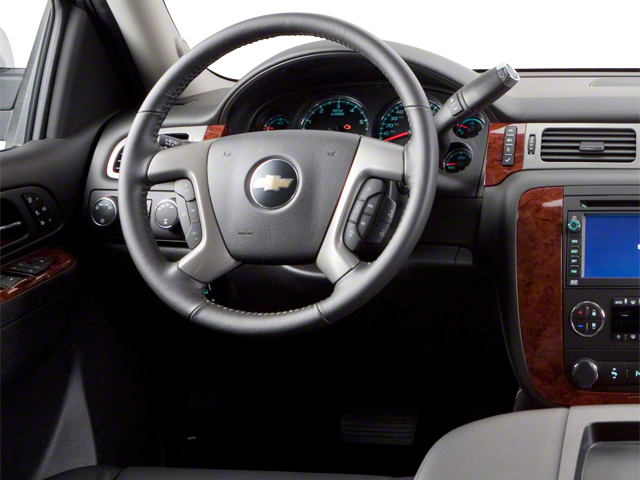

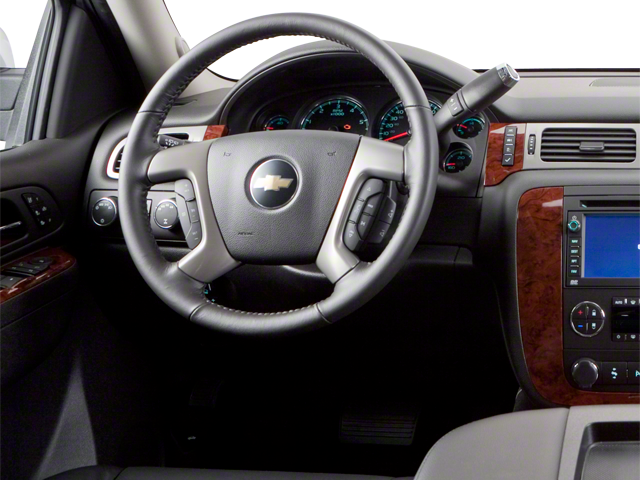

• Steering wheel, vinyl
• Steering wheel controls, mounted cruise controls
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

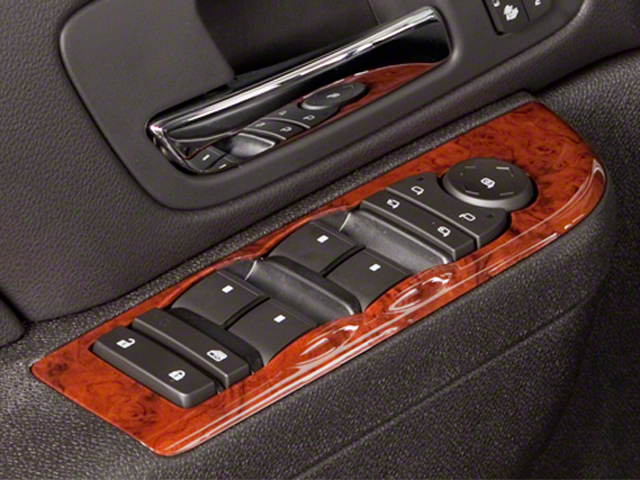

• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection (With (5W4) Identifier for Special Service vehicle, Auto Lockout is disabled on Driver door.)
• Remote vehicle starter prep package includes Remote Keyless Entry (Remote vehicle starter fob available as a GMC accessory.)
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, tri-zone manual HVAC controls with individual climate settings for driver, right-front passenger and rear seat with rear controls located in floor console with front bucket seats and in the roof console with front bench seat (With 5W4, rear controls located in roof console)
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 3 auxiliary, 12-volt includes 2 on the instrument panel and 1 in the cargo area
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions (With (5W4) Identifier for Special Service vehicle, does not include driver- and passenger-side door switch with delayed entry feature.)

• StabiliTrak, stability control system with traction control
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) passenger third row bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Turn-by- Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Safety belts, 3-point, driver and right-front passenger
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire Pressure Monitoring System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

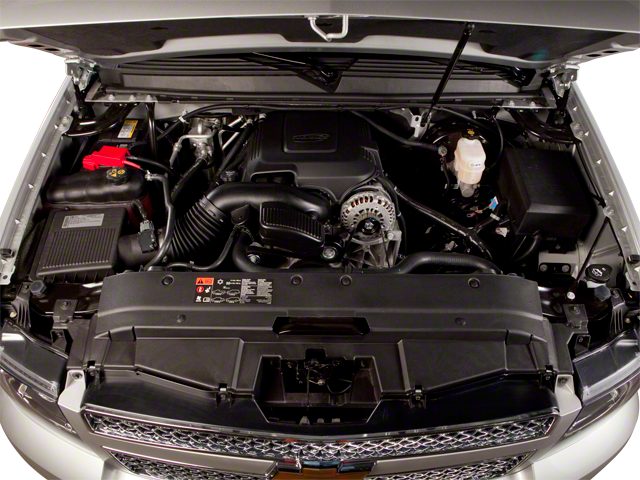

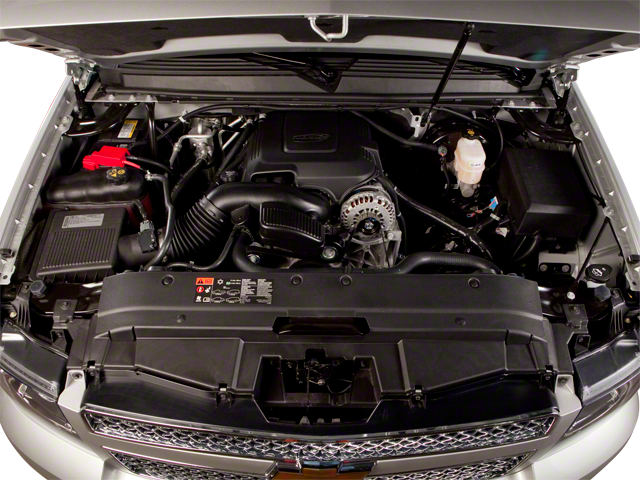

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [238.6 kW] @ 5400 rpm
• 335 lb-ft of torque [452.2 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm
• 348 lb-ft of torque [469.8 N-m] @ 4400 rpm)
• iron block (STD)

• AIR CLEANER HIGH-CAPACITY
• IGNITION 100-amp main power supply wiring at instrument panel and trunk cargo area.
• REAR AXLE 3.42 RATIO
• ONSTAR DELETE
• SEAT ADJUSTER FRONT PASSENGER 6-WAY POWER
• FLOOR CONSOLE DELETE Deletes the floor console and associated audio equipment that is included with premium cloth high back bucket seats. All exposed floor areas will remain untrimmed
• GROUND STUDS AUXILIARY 2 per vehicle in the rear compartment
• COOLING AUXILIARY TRANSMISSION OIL COOLER HEAVY-DUTY AIR-TO-OIL
• HEADLAMPS DAYTIME RUNNING LAMPS AND AUTOMATIC HEADLAMP CONTROL DELETE. Deletes the standard daytime running lamps and automatic headlamp control features from the vehicle for police stealth surveillance
• TIRES P265/70R17 ALL-SEASON BLACKWALL
• RADIO SUPPRESSION BRAIDED BRASS STRAPS attached to various body locations
• IDENTIFIER FOR SPECIAL SERVICE VEHICLE. Utilized to identify a vehicle as a police/fire special service vehicle for marketing order-build process and emission certification purposes
• ENGINE VORTEC 5.3L V8 SFI FLEXFUEL with Active Fuel Management capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [238.6 kW] @ 5400 rpm 335 lb-ft of torque [452.2 N-m] @ 4000 rpm with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm 348 lb-ft of torque [469.8 N-m] @ 4400 rpm) iron block (STD)
• TRANSFER CASE ACTIVE 2-SPEED ELECTRONIC AUTOTRAC with rotary controls includes neutral position for dinghy towing.
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• SEAT DELETE THIRD ROW PASSENGER
• LICENSE PLATE BRACKET FRONT
• SUSPENSION PACKAGE PREMIUM SMOOTH RIDE (STD)
• SWITCHES REAR WINDOW INOPERATIVE (rear windows can only operate from driver's position)
• DOOR HANDLES INSIDE REAR DOORS INOPERATIVE (doors can only be opened from outside)
• TRAILERING PACKAGE HEAVY-DUTY includes (KNP) auxiliary external transmission oil cooler and (KC4) external engine oil cooler provides increased trailering capabilities.
• EBONY PREMIUM CLOTH SEAT TRIM
• REMOTE VEHICLE STARTER SYSTEM includes Remote Keyless Entry
• WHEELS 4 - 17 X 7.5 (43.2 CM X 19.1 CM) ALUMINUM 5-SPOKE with smooth surface and rectangular pockets
• BATTERY SINGLE 730 CCA Provides a 730 CCA HD cranking battery replacing the standard 600 CCA battery
• DOOR LOCKS INSIDE REAR DOORS INOPERATIVE
• SPOTLAMP LEFT-HAND
• SUMMIT WHITE
• SHIP THRU PRODUCED IN ARLINGTON ASSEMBLY AND SHIPPED TO KERR INDUSTRIES AND ONTO ARLINGTON ASSEMBLY
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume TheftLock and auxiliary audio input jack (STD)
• COMMERCIAL PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATS 2ND AND 3RD ROW VINYL with front cloth seats Provides vinyl second and third row seats and cloth front seats

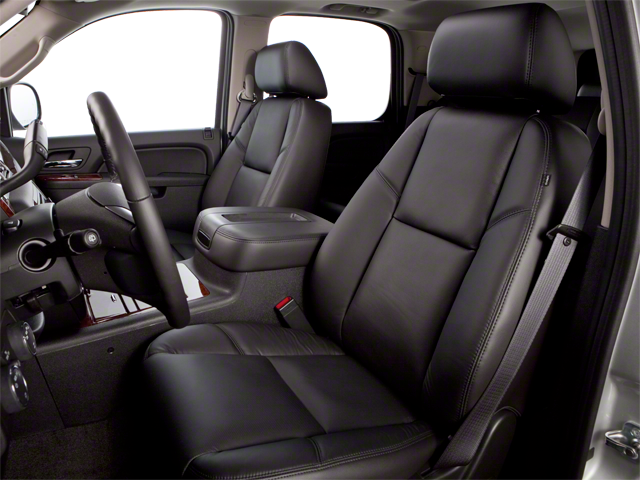

• SEATS FRONT BUCKET WITH PREMIUM CLOTH (AG1) 6-WAY POWER DRIVER and (AG2) front passenger seat adjusters adjustable head restraints (AM1) driver manual lumbar control floor console and rear storage pockets
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Conventional Spare Tire
• Luggage Rack
• Running Boards/Side Steps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Power Outlet
• Pass-Through Rear Seat
• Rear Bench Seat
• Power Driver Seat
• Pass-Through Rear Seat
• Adjustable Steering Wheel
• Cruise Control
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• Immobilizer
• Multi-Zone A/C
• A/C
• Rear A/C
• A/C
• Rear A/C
• Rear Defrost
• Power Outlet
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Rear Reading Lamps
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Front Side Air Bag
• Requires Subscription
• Requires Subscription
• Requires Subscription
• Requires Subscription
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2948
• Curb Weight - Rear (lbs): 2679
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 780
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 5-Link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QGI
• Rear Tire Order Code: QGI
• Spare Tire Order Code: ZVL
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): 2135
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 9
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

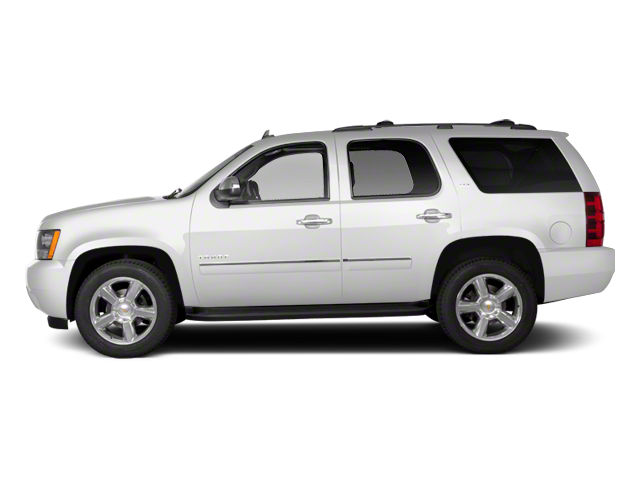

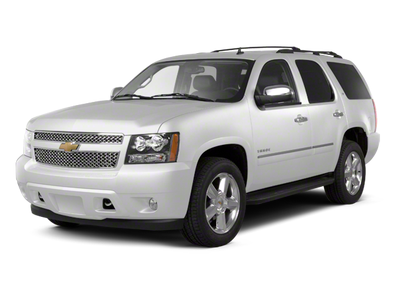

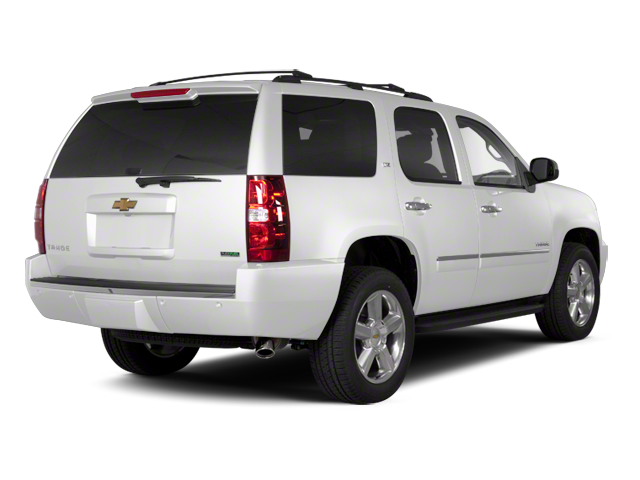

• Vehicle Name: Chevrolet Tahoe
• Body Style: 4 Door Sport Utility
• Body Code: E52
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11
